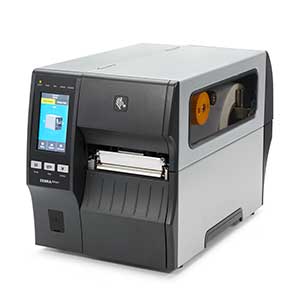

Printer Zebra ZT411

Print Methods: Thermal transfer and direct thermal printing

Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window

Side-loading supplies path for simplified media and ribbon loading

Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality

Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.2, Dual USB Host

4.3-in. color touch display with intuitive menu for quick operation and settings management

Bi-colored status LEDs for quick printer status

ENERGY STAR qualified

Zebra Designer Essentials: easy label design tool free at www.zebra.com/zebradesigner

Physical Characteristics

• Dimensions :  ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H 495 mm L x 269 mm W x 324 mm H

• weight : ZT411: 36 lbs./16.33 kg

Printer Zebra ZT411 Specifications

• Resolution : 203 dpi/8 dots per mm

• Memory : 256 MB SDRAM memory 512 MB on-board linear Flash memory

• Maximum Print Width : ZT411: 4.09 in./104 mm

• Maximum Print Speed : ZT411: 14 ips/356 mm per second

• Media Sensors :Adjustable dual media sensors: transmissive and reflective

• Print Length : ZT411 203 dpi: 157 in./3988 mm

Media Characteristics

• Media Width : ZT411 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind

• Maximum Media Roll Size :8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core

• Thickness : 0.0023 in./0.058 mm to 0.010 in./0.25 mm

• Media Types : Continuous, die-cut, notch, black-mark, linerless media*

• *For use only with linerless printer model

Ribbon Characteristics

• Standard Length : 1476 ft./450 M

• Width : ZT411: 2.00 in./51 mm to 4.33 in./110 mm

• Core 1.0 in./25 mm I.D.

Programming Languages

ZBI 2.0™—Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.

ZPL and ZPL II™—Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.

EPL and EPL2™—Eltron™ Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified

Environmental

• Operating Temperature Thermal transfer: 40º F to 104º F/5º C to 40º C

• Direct thermal: 32º F to 104º F/0º C to 40º C

• Storage/Transportation Temperature -40º F to 140º F/-40º C to 60º C

• Operating Humidity 20% to 85% non-condensing

• Storage Humidity 5% to 85% non-condensing

Barcode Symbologies
