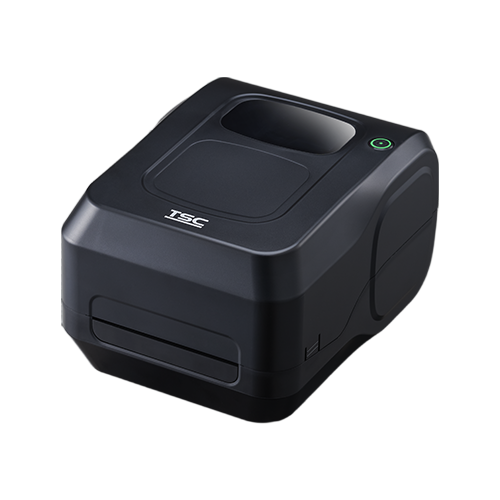

TSC TL241

Seamless Integration, Effortless Deployment

• Out-of-the-box auto-switch printer language emulation

• Supports multiple media types, print width up to 108 mm, print length up to 25,400 mm, print speed is up to 6 ips (152 mm/sec) at 203 dpi resolution

Easy Management

• Real-time remote printer monitoring and management with TSC Console

• Downtime prevention with self-diagnostic TPH Care

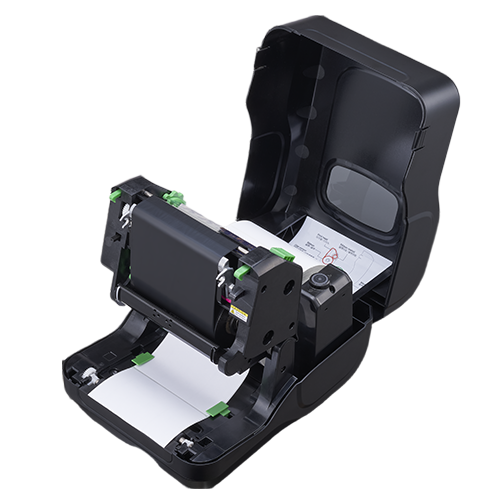

• User-friendly design: toolless removal and replacement of the TPH (thermal printhead) for easy maintenance

• Media window design so operators can easily check supply stock status

Environmentally Sustainable

100% recyclable packaging

Hardware Specifications TL DL TSC TL241

Resolution

203 dpi (8 dots/mm)

Print Method

Direct thermal/Thermal transfer

Display

LED with buttons

Hardwire Connectivity

USB

Enterprise Printer Management

TSC Console

Type

Desktop

Max. Print Speed

Up to 6 ips (152mm/s)

Max. Print Width

4.25" (108mm)

Max. Print Length

1,000°(25,400mm)

RAM

64 MB DRAM

Flash

16 MB

Media Specifications

Internal Label Capacity

5"(127mm) 00

Max. Media Width

0.8-4.6119-118mm)

Media Type

Continuous, die-cut, black mark, fan-fold (outside wound)

Max. Ribbon Length

300 m

Ribbon Width

1.6-4.3 (40-110mm)

Media Core Diameter

1.0"(25.4mm)

Construction

ABS & ABS+PC plastic

Programming Languages

TSPL-EZD
